Hi Kurt,

> Ah, I see, you are doing it by smoothing the end result, not by adjusting
> the spliced-in section to achieve the desired continuity?

Yes, I think it is probably easier to smooth out the result than to
splice in a spline with all the infinitely many correct derivatives
at the joins.

What you want is a function which has all its derivatives zero at the origin.
You might think that impossible because its taylor series would be
identically zero so it would surely just be a constant function
- indeed you can't have a function which can be given by a taylor series
within any finite radius of convergence - but
such functions do exist, it is just that the taylor series only converges
to the function at a single point.

Here is one:

http://www.shu.edu/projects/reals/cont/fp_cinf.html

g(x) = e^-1/x^2 if x!= 0
= 0 at origin

Then by the product rule if we take
g(x)*h(x) for any function h bounded at the
origin then its derivative
g(x)*h'(x)+g'(x)*h(x)
is zero, and indeed all its derivatives are zero
at the origin once more.

So if our function is f(x) we want to smooth out
f(x) at the origin and let K*x be a line
at the intermediate slope between the two gradients
for F for 0- and 0+

Just use
k*x + g(x)*(f(x)-k*x)

Then it's derivative at the origin is k
and all its other derivatives are 0.

I used that for the quarter waves
as it was easy to do with the
average slope for the two curves
as 0 there.

Could do it for the complete
waveform too, but you would have to
add in a cubic or something and multiply
two copies of this function with the infinitely
many zero derivatives together with it,
(2 copies, one with shifted x values) - or something like
that - in order to get both ends working.

But actually I was lazy there and did
another method for the complete wave
It just smooths out the first derivative
and probably not the others, but it gives decent
results which is the main thing in a practical
situation like this.

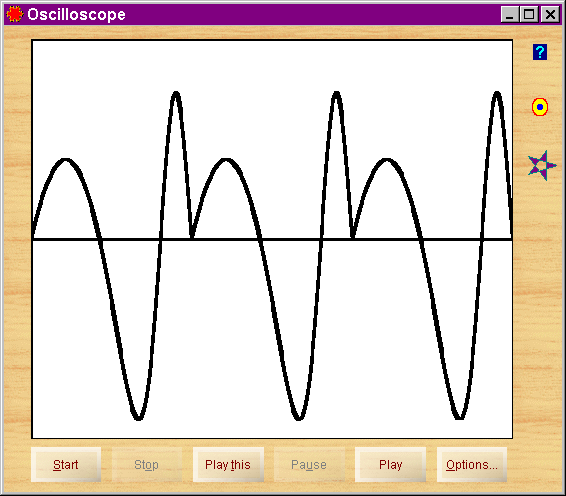

A couple of screen shots:

http://www.robertinventor.com/waveform_before_smoothing.png
http://www.robertinventor.com/waveform_after_smoothing.png

> Maybe we should talk about getting FTS ported to the Mac? How much of the
> code is user-interface and how much of it is sythesis and other
> implementation, and how well are these aspects separated out? If there was
> a quick-and-dirty way to do it it might be worth it. Just a thought. Not
> that I have any time for it at the moment or in the next year! ;)

Thanks for the thought.

Some parts are well separated out. The code for generating the waveforms
just calls a number of routines to fill a buffer with waveform audio
data. So that could be ported to any platform. Ditto for
the equation parsing e.g. for the heavyside functions etc.
Indeed one could make that part of the code into
a console app version that did all that fairly easiily
and it would be multi-platfrom code surely, only
standard c routines. Maybe output in .RAW format
(just the waveform data) and input all the user
variables from a file or something. Not saying that
I plan to do that, but it could be done.

The GUI, writing the waveform to file in the .WAV riff format,
and playing the audio are all coded using many Windows routines and the
Windows architectures, and I'd be surprised if it could
be ported easily. So anyone contemplating the port would
need to code for all that.

Easiest though is to use FTS with Virtual PC.
Several users now use FTS on Macs like that
and report that it works fine.

Unfortunately though I don't know if one
can get a trial version of Virtual PC any more
now that it has been taken over by Windows - one
may have to purchase it to try it out.

The best way to write a platform indpendent app is
set out to do that from the start and write it using
one of the tools for that such as GtK as Manuel does.
I may give that a go some time in the future with some
small program to see how it goes (probably not this year
yet).

Thanks,

Robert
